Jeep JK Wrangler Stainless Steel Extended Brake Line Installation Write-Up

wayoflife

Administrator
Staff member
If you’re planning to lift your Jeep JK Wrangler 3″ or more, it is important that you also plan to install a set of rear brake line extension brackets or better yet, install a set of stainless steel extended brake lines. Without them, your short factory brake lines will get damaged when articulating on the trail. Fortunately, upgrading your brake lines to a set of extended ones is relatively affordable and, as you will see in the write-up below, easy to do.

What You Will Need
• 10,11,12,15,17mm Sockets & Wrenches
• Ratchets
• Inch lb. Torque Wrench
• Pliers
• Wire Snips
• Zip Ties
• Oil Catch Pan
• Brake Fluid
• Brake Bleeder Kit

What You Will Get
(4) Extended Brake Lines
(8) Copper Crush Washers
(4) Mounting Brackets w/Clips

Instructions

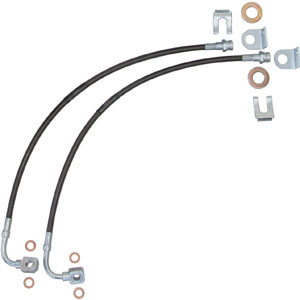

This is a pic of all the parts you should get with your new stainless steel extended brake line kit. Take some time to make sure you have all the parts shown as well as all the tools listed on the left prior to starting this project.
main.php


Rear End Installation

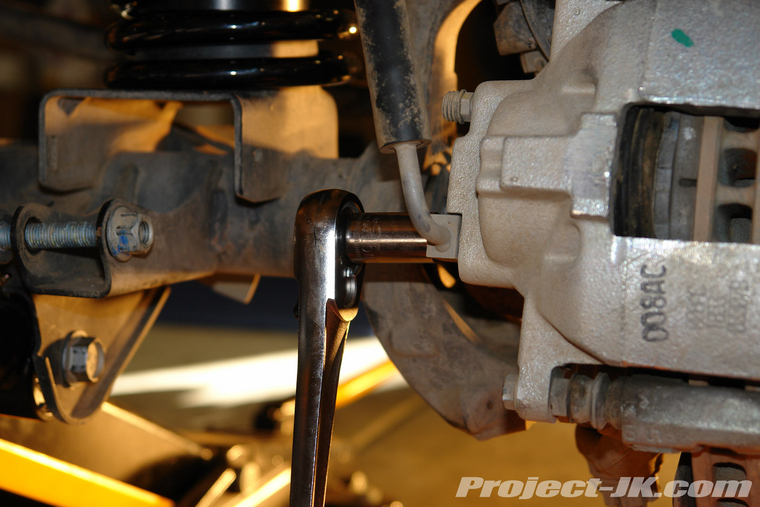

1. Open up your hood so that you can keep an eye on the master cylinder and then place an oil catch pan underneath the driver side rear brake caliper. Then, using a 15mm socket, remove the banjo bolt securing your brake line to it.
main.php


2. Remove the banjo bolt from the brake hose, remove the copper washers and then set it aside for now as you will need to reuse this bolt. Try to hang or position the loose brake line end up to help minimize the amount of brake fluid that will leak out.
main.php

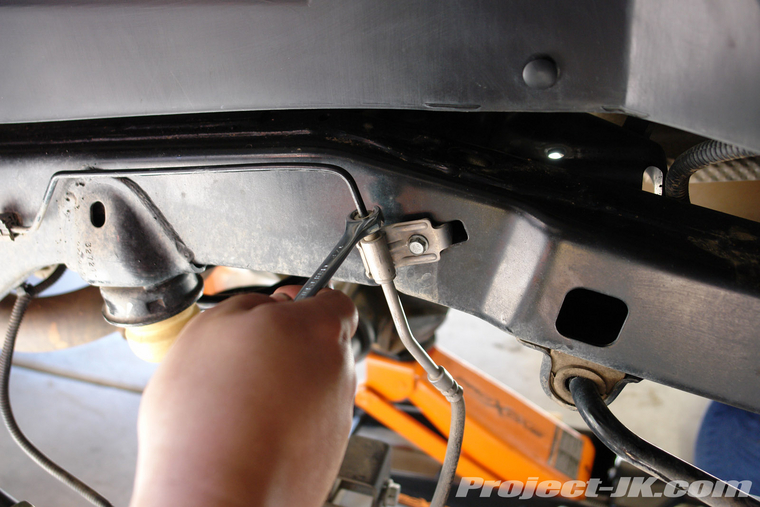

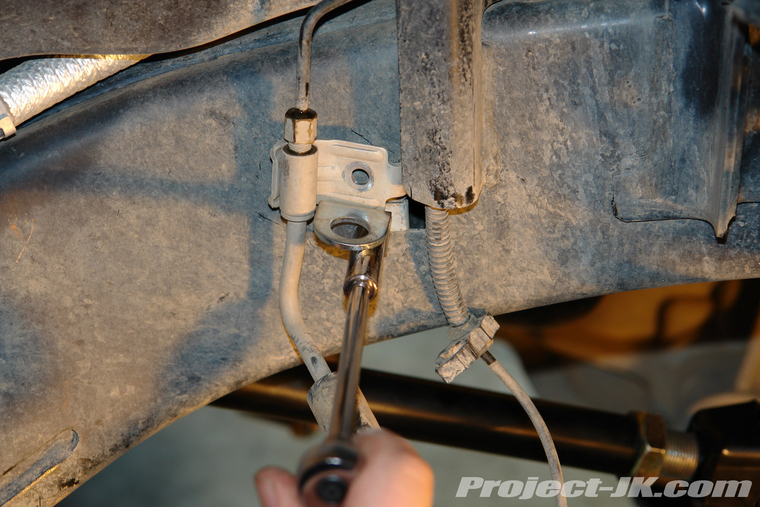

3. Using an 11mm wrench, separate the hard line from the bracket/hose. Then, using a 10mm socket, remove the bolt securing the bracket/hose to the frame rail. Set aside the bolt for later use but the hose can be discarded.
main.php

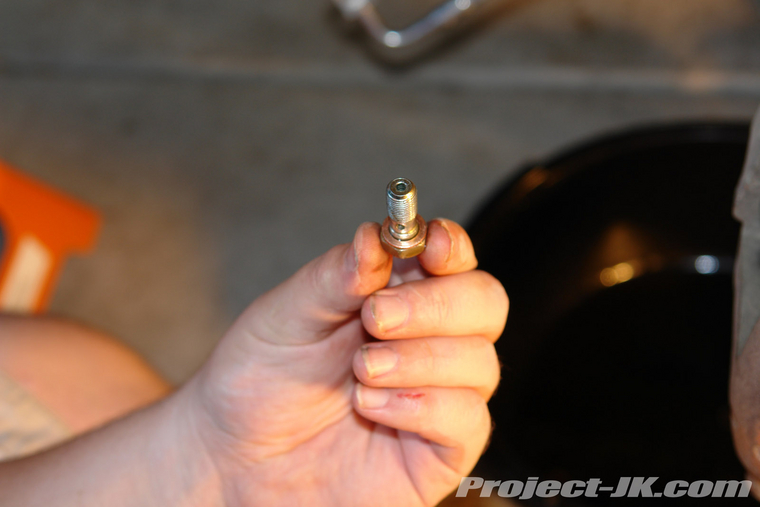

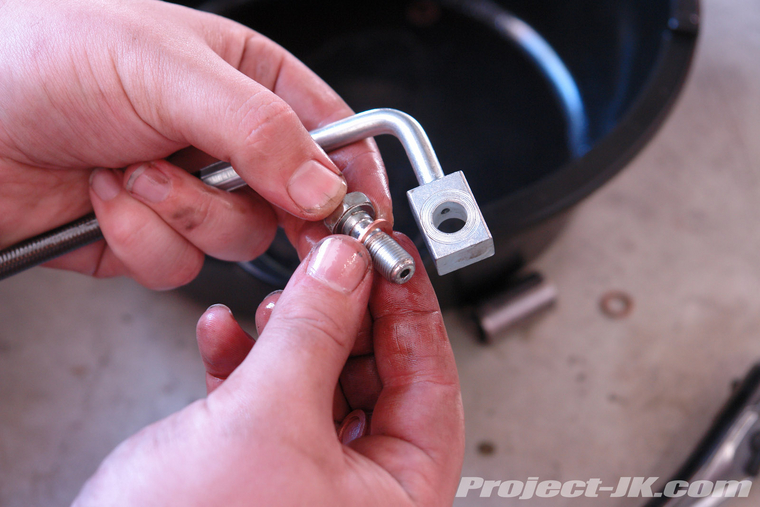

4. Slip one of the new copper crush washers that should come with your new stainless steel brake lines on to the factory banjo bolt you removed earlier.
main.php

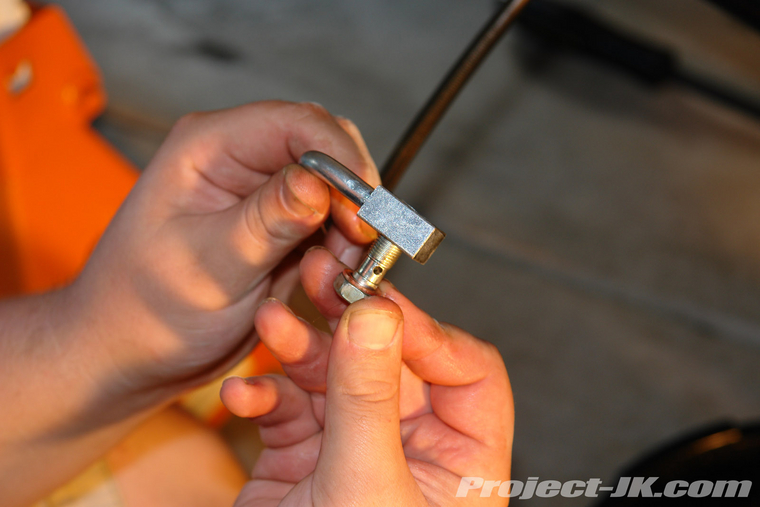

5. Insert the factory banjo bolt with copper crush washer on through the new stainless steel brake line (be mindful that the elbow of the hard line needs to extend towards the back) and then slip on another copper crush washer as shown in this pic.
main.php

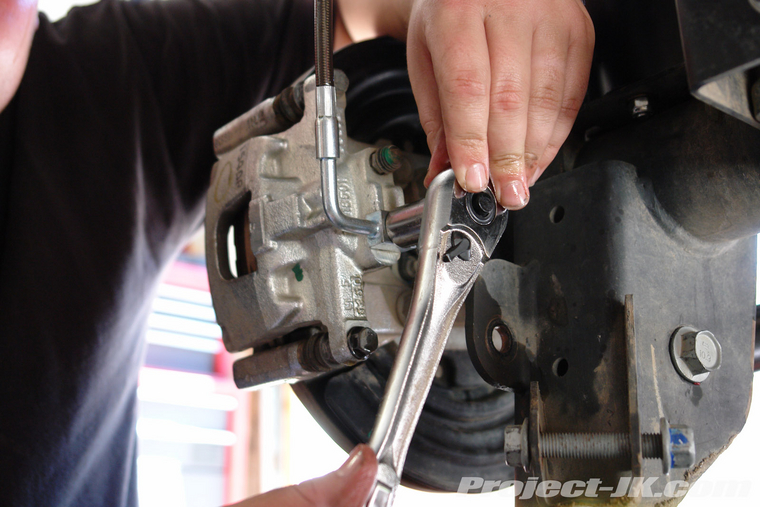

6. Using a 15mm socket, secure your new stainless steel break line to the break caliper making sure that the hard line elbow extends out and back (as opposed to up, then out) as shown in this pic. Be VERY CAREFUL to only tighten the banjo bolt to 276 in. lbs. of torque. This is a very delicate bolt and can break easily if too much force is applied.
main.php

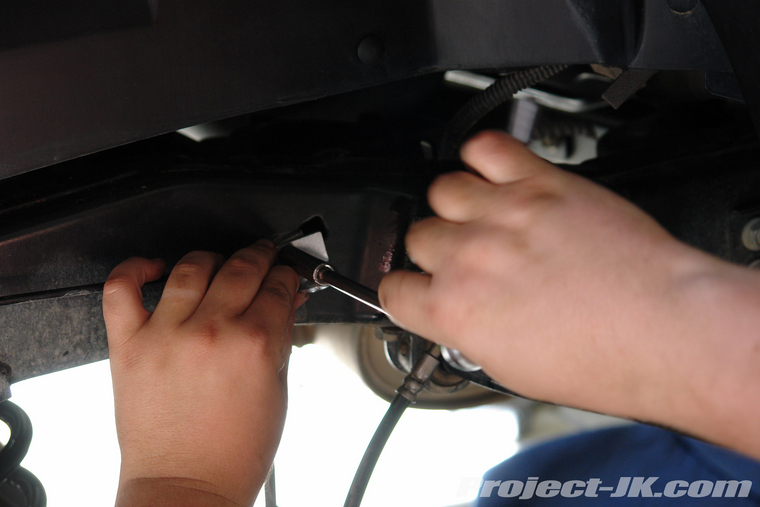

7. Use a 10mm socket to secure your new stainless steel brake line mounting brackets to the frame rails using the factory bolts.
main.php

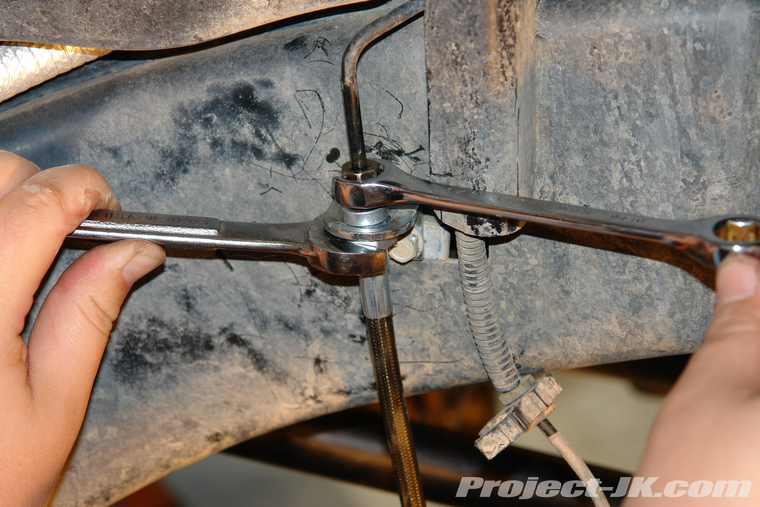

8. Slip your new stainless steel brake line up through the new mounting bracket and then fasten the factory hard line to it using a 12mm and 17mm wrench.
main.php

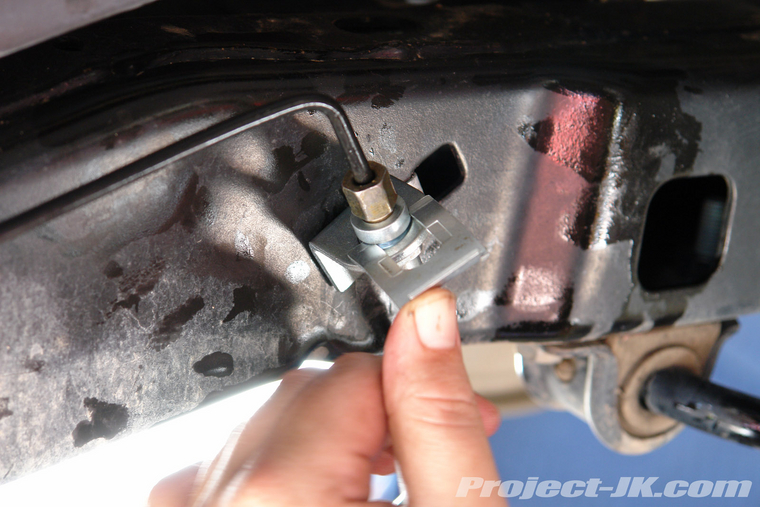

9. Secure your new stainless steel brake line to the mounting bracket using the retaining clip provided with the kit.
main.php


10. Check the fluid level in your master cylinder, fill as needed and then repeat these steps on the passenger side.


Front End Installation

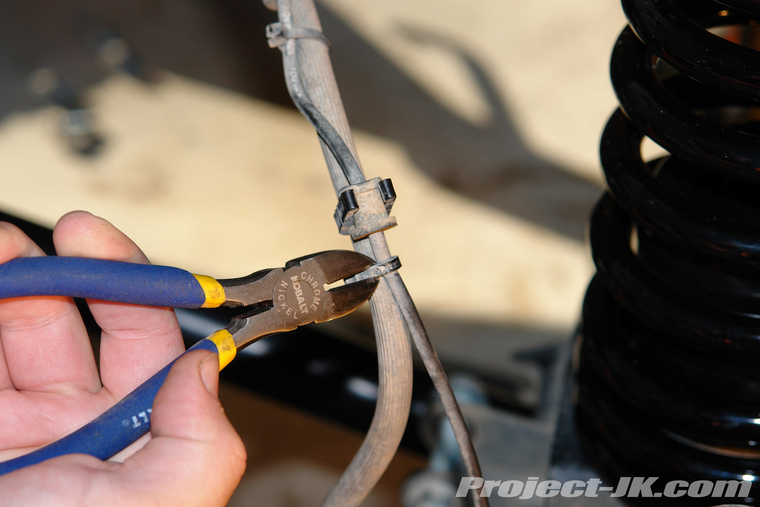

1. Begin the installation of your new stainless steel brake lines by cutting the thin support tie holding your passenger side brake line and ABS line together as shown in this pic.
main.php

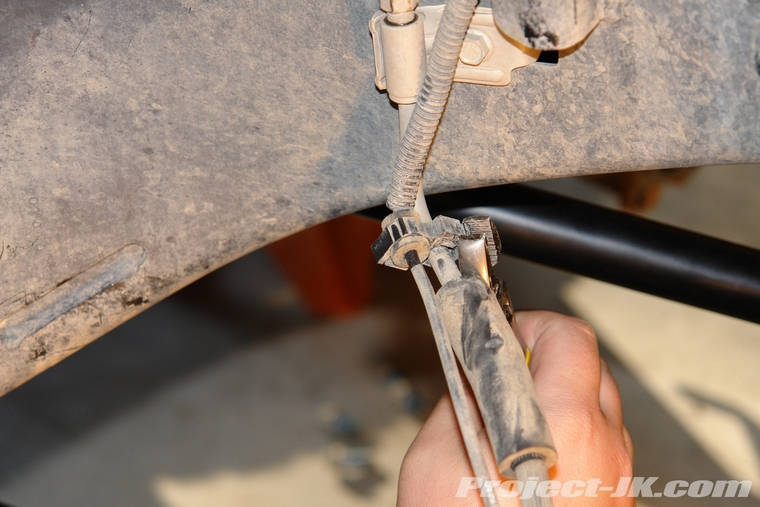

2. Use a pair of pliers to carefully separate the main plastic coupling holding your brake line and ABS lines together.
main.php

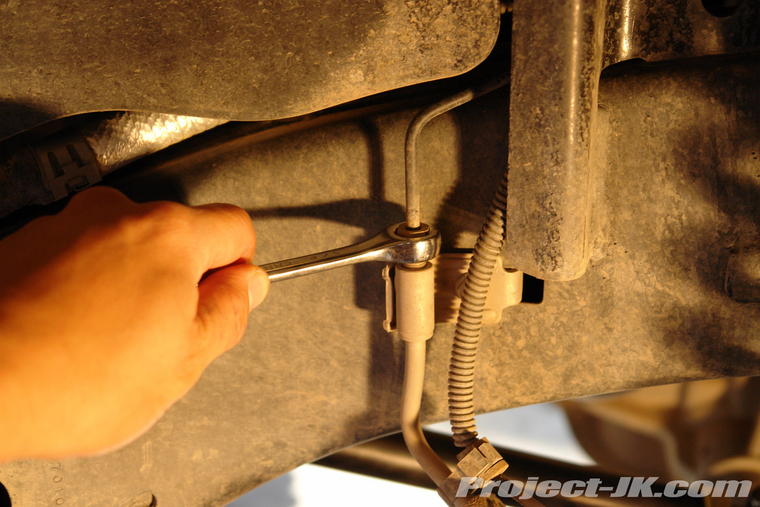

3. Using an 11mm wrench, separate the hard line from the bracket/hose. Then, using a 10mm socket, remove the bolt securing the bracket/hose to the frame rail. Set aside the bolt for later use but the hose can be discarded.
main.php


4. Use a 10mm socket to secure your new stainless steel brake line mounting bracket to the frame rails using the factory bolt.
main.php


5. Place an oil catch pan underneath your the brake caliper. Then, using a 15mm socket, remove the banjo bolt securing your brake line to it and set it aside as you will need to reuse it. The hose can be discarded.
main.php


6. Slip your new stainless steel brake line up through the new mounting bracket and then fasten the hard line to it using a 12mm and 17mm wrench.
main.php


7. As before, slip one of the new copper crush washers that should come with your new stainless steel brake lines on to the factory banjo bolt you removed earlier.
main.php


8. Insert the factory banjo bolt with copper crush washer on through the new stainless steel brake line (be mindful that the elbow of the hard line needs to extend towards the back) and then slip on another copper crush washer as shown in this pic.
main.php


9. Using a 15mm socket, secure your new stainless steel break line to the break caliper making sure that the hard line elbow extends out and back (as opposed to up, then out) as shown in this pic. Be VERY CAREFUL to only tighten the banjo bolt to 276 in. lbs. of torque. This is a very delicate bolt and can break easily if too much force is applied.
main.php


10. Secure your new stainless steel brake line to the mounting bracket using the retaining clip provided with the kit.
main.php

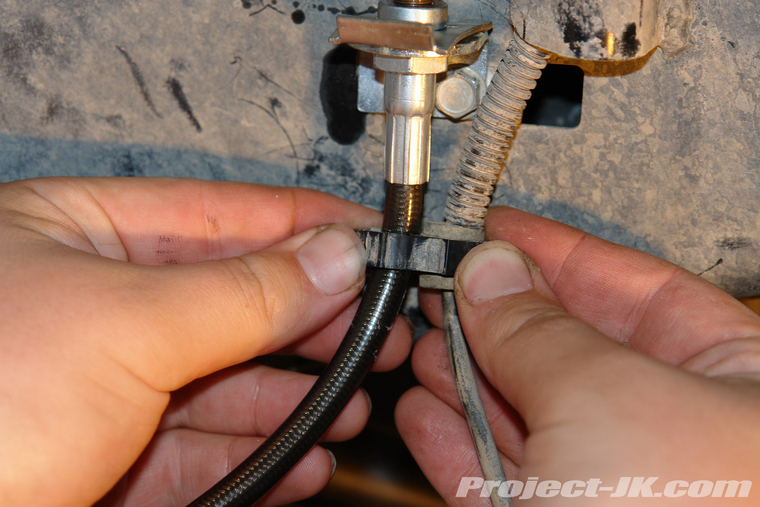

11. Reattach your new stainless steel brake line and ABS wiring together using the factory main plastic coupler.
main.php

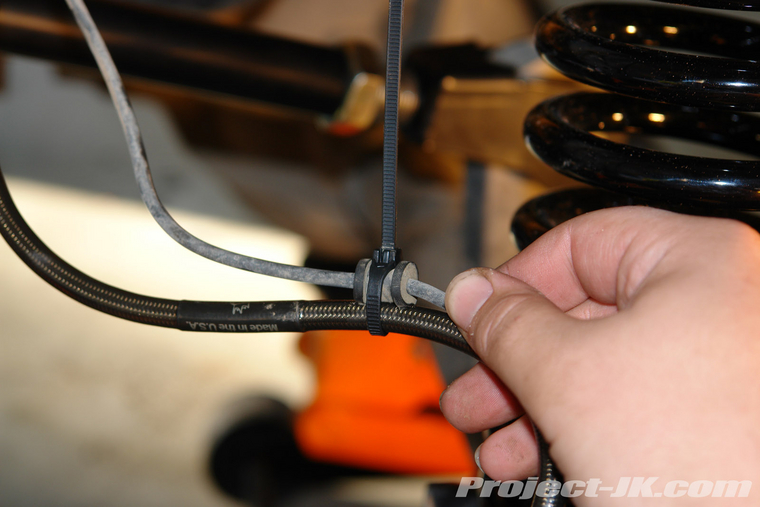

12. For additional support, zip-tie your new stainless steel brake line and ABS together as they were before.
main.php


13. Check the fluid level in your master cylinder, fill as needed and then repeat these steps on the driver side.

14. You will need to bleed your brake system before you can drive it. Click on the link below to see a detailed write-up on how to do this:
Jeep JK Wrangler Brake Bleeding Write-Up

:cool:

On my 2012 front brake lines the factory set up is as follows:


The elbow goes forward and up vice back and up as the write-up is, which way should I put the teraflex braided brake lines on?


Ended up installing them as the factory lines were installed. New lines tended to form to that routing and finished up nice I think.



Question, I put the bracket on the back for now and extended the vent tube. When I check my flex the e- brake cable seems to be the shortest thing now. I don't see anyone talk about this but do I just take them out of the "clips" they hook to the body with?

Eddie, thanks for the write-up helped a bunch. Hadn't changed brake lines on something since I was a teenager.

Question, I put the bracket on the back for now and extended the vent tube. When I check my flex the e- brake cable seems to be the shortest thing now. I don't see anyone talk about this but do I just take them out of the "clips" they hook to the body with?

that's how mine were after getting my lift installed at ORE. Been running this way over two years without a problem

Question, I put the bracket on the back for now and extended the vent tube. When I check my flex the e- brake cable seems to be the shortest thing now. I don't see anyone talk about this but do I just take them out of the "clips" they hook to the body with?

Yes, remove them from the clips attached to the bottom of your Jeep. :yup:

Looking for advice on SS break lines. 157,000 KM on the clock with a TF level kit installed 2/1".

Planning on break fluid flush and thinking to replace the original 2008 rubber break lines on each corner.

I'm hearing better break peddle firmness but I can't speak with experience.

Anyone know OEM length of break lines?

RE makes a front and rear set that is 20".

Guess I'm looking for stock to 2" lift length?

Any brands to stay clear of, and what's known as good?

Thank you

I replaced my front brake lines with an extended stainless steel set and I now have a very small leak coming out the top of the nut on the brake hard line where it attaches to the new brake line. I have tightened it, which has not helped the leak at all. Any thoughts on how to remedy this without having to replace the hardline?

I replaced my front brake lines with an extended stainless steel set and I now have a very small leak coming out the top of the nut on the brake hard line where it attaches to the new brake line. I have tightened it, which has not helped the leak at all. Any thoughts on how to remedy this without having to replace the hardline?

You may have over tightened the nut and caused the flare on the hard line to split. If this is the case, you will need to cut the line with a tube cutter and then re-flare it.

I have a 3” lift, do I only need to extend the rear brake lines or the front too, thanks in advance

Thread revival!! OK so does anyone have pictures of how they routed the front brake lines? I've got a 13' and it has those weird brackets that are above the lower control arm, it seems to be limiting the droop a lot but I'm not sure exactly how to remove the brake lines out of those brackets. 1476656687452.jpg

Sent from my SM-N910P using WAYALIFE mobile app

Thread revival!! OK so does anyone have pictures of how they routed the front brake lines? I've got a 13' and it has those weird brackets that are above the lower control arm, it seems to be limiting the droop a lot but I'm not sure exactly how to remove the brake lines out of those brackets. View attachment 227340

Sent from my SM-N910P using WAYALIFE mobile app

See the bolts on the sides of the perch? They unbolt there and then come right off.


Sent from my iPad using WAYALIFE mobile app

See the bolts on the sides of the perch? They unbolt there and then come right off.


Sent from my iPad using WAYALIFE mobile app
I get that part, however do I leave that bracket on the brake line or is there a way to seperate them w/o prying on the metal or....? And after I get it off where do I run the lines so they don't get caught by the shock or tire while I am turning?
