Wiring up 6 Gang Switch panel

run2jeepn

Caught the Bug

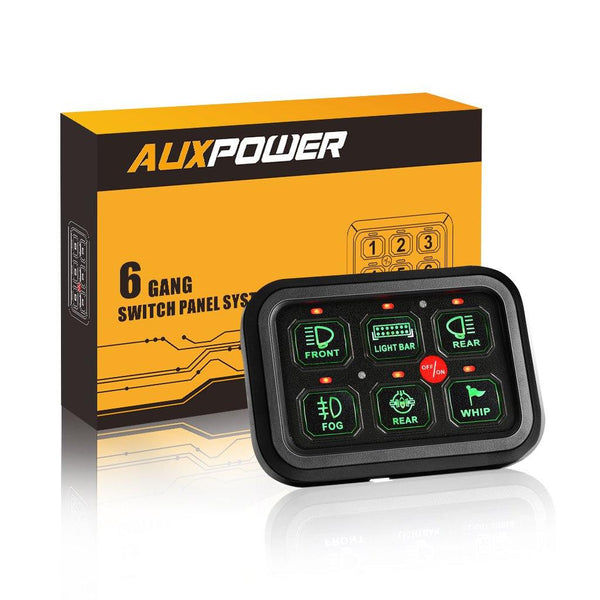

I got a AUX-Power 6 Gang Switch Panel last Christmas, but just now getting around to installing it.


It has
1 - 30A
2 - 20A
3 - 20A
4 - 10A
5 - 10A
6 - 5A

What I have to wire into it.
1. Front JK Locker
2. Rear JK Locker
3. Pair of 3in LED Pods
4. Set of Four 4in LED Pods
5. Pair of 6in LED bars
6. (Open)

Can't I just run 10A fuses all of them?

I got a AUX-Power 6 Gang Switch Panel last Christmas, but just now getting around to installing it.


It has
1 - 30A
2 - 20A
3 - 20A
4 - 10A
5 - 10A
6 - 5A

What I have to wire into it.
1. Front JK Locker
2. Rear JK Locker
3. Pair of 3in LED Pods
4. Set of Four 4in LED Pods
5. Pair of 6in LED bars
6. (Open)

Can't I just run 10A fuses all of them?
You can run 10 amp fuses in all as long as the load is 10amp or less ,
